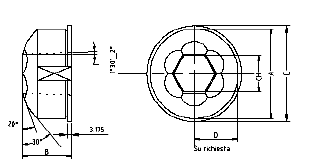

MATRICI A TRANCIARE / MISURE STANDARD: TIPO F
|
CODICE
|
BOLT MAKER
|
DIMENSIONE NOMINALE
|
CH
+ 0,05
- 0
|
A
+ 0
- 0,02
|
B |
D
|
C |
| F 55316 |
3/16" |
5.50 |
5.38 |
19.100 |
11.176 |
9.144
|
21.082
|
| F 6316 |
6 |
5.80 |
| F 7516 |
7 |
6.80 |
| F 8316 |
8 |
7.80 |
| F 10316 |
10 |
9.78 |
| F 814 |
1/4" |
8 |
7.80 |
27.025 |
15.784 |
13.081
|
28.448
|
| F 1014 |
10 |
9.78 |
| F 1114 |
11 |
10.75 |
| F 1314 |
13 |
12.75 |
| F 10516 |
5/16" |
10 |
9.78 |
31.826
|
15.784 |
15.494 |
34.544 |
| F 11516 |
11 |
10.75 |
| F 12516 |
12 |
11.75 |
| F 13516 |
13 |
12.75 |
| F 16516 |
16 |
15.75 |
| F 17516 |
17 |
16.75 |
| F 1338 |
3/8" |
13 |
12.75 |
38.176 |
19.050 |
18.669 |
40.894 |
| F 1438 |
14 |
13.75 |
| F 1638 |
16 |
15.75 |
| F 1758 |
17 |
16.75 |
| F 1838 |
18 |
17.75 |
| F 1938 |
19 |
18.67 |
| F 1412 |
1/2" |
14 |
13.75 |
44.526 |
22.098 |
21.844 |
47.244 |
| F 1712 |
17 |
16.75 |
| F 1812 |
18 |
17.75 |
| F 1912 |
19 |
18.67 |
| F 2212 |
22 |
21.67 |
| F 2412 |
24 |
23.67 |
| F 2258 |
5/8" |
22 |
21.67 |
50.876 |
28.448 |
25.019 |
53.848 |
| F 2458 |
24 |
23.67 |
| F 2758 |
27 |
26.67 |
| F 3058 |
30 |
29.67 |
| F 2434 |
3/4" |
24 |
23.67 |
63.601
|
35.052 |
31.394 |
66.294 |
| F 2754 |
27 |
26.67 |
| F 3034 |
30 |
29.67 |
| F 3234 |
32 |
31.61 |
| F 3634 |
36 |
35.38 |
| F 4134 |
41 |
40.38 |
Dimensioni in mm - Dimension in mm - Masse in mm - Mesures in mm - Medidas in mm |
|
